B.1 | Overview#

[1] Summary#

rivt is designed to assemble calculation documents from a wide variety of sources including engineering programs, data files, Python scripts, image files and single purpose programs like Excel, Mermaid, Graphviz, and LaTeX. It accomplishes this using four API functions:

R(): Runs external binary programs
I(): Inserts static sources e.g. images, text, and PDF files
V(): Imports data and calculates values from equations and functions
T(): Processes scripts and block text, e.g. Python, LaTeX, rst

rivtlib is the Python library that compiles a rivt file to a text, PDF or HTML doc. A rivt file is a Python file (.py) that imports the rivtlib Python package and includes rivt markup. rivt dependencies are listed :ref:here <vscode-settings>.

A public rivt file is a subset of a rivt file, made up of sections the author chooses to share under an Open Source license. rivt is designed to seamlessly extract public files, allowing the author discretion in choosing which file sections to make public.

Groups of rivt files may be compiled and linked into a single rivt report. Collections of rivt files with related subject matter may be grouped together as a rivtbook.

rivt files are generally edited and run in an IDE. The lightweight Pyzo IDE is installed by rivtlib. The VSCode IDE is a full featured IDE with rivt profiles and extensions documented here. VSCode is installed with the portable rivt-code installation.

rivt file examples are illustrated here. Additional rivt files may be downloaded from Google Drive at OpenModels.info. An interface for searching public rivt files on GitHub is here.

rivt is distributed under the MIT open source license. (see:ref:Licenses).

[3] API#

The rivt API includes API methods, markup and structured folders and files.

The API is designed to be:

  • lightweight

    rivt markup wraps reStructuredText and uses fewer than three dozen tags and commands. rivt tags format lines and blocks of text and commands read and write files.

  • extensible

    rivtlib is written in Python with direct access to the large library of Python packages and functions. Python scripts and external programs can be integrated into a rivt doc.

  • versatile

    A rivt file produces a text, HTML or PDF doc from the same file. Multiple docs can be organized into reports. rivtbooks provide a convenient way to organize files around a subject matter for insertion into reports. rivt can be run within a variety of IDEs.

  • efficient

    The file and folder settings produce clear, organized documents with default settings. Settings may be customized via conf.py and yaml files.

The API methods are listed in the table below, where (rS) is a triple quoted rivt string argument.

API Function

Name

Purpose

rv.R (rS)

Run

Run external programs

rv.I (rS)

Insert

Insert static sources

rv.V (rS)

Values

Calculate values

rv.T (rS)

Text

Process scripts and text blocks

rv.D (rS)

Doc

Publish docs

rv.S (rS)

Skip

Skip section

rv.X ()

Exit

Exit rivt file

An API function starts in the first column and takes a triple quoted rivt string argument containing a header and content substring. The first line of the rivt string is the header substring, followed by a content substring indented 4 spaces for readability and section folding. See here for rivt string details.

[2] Docs#

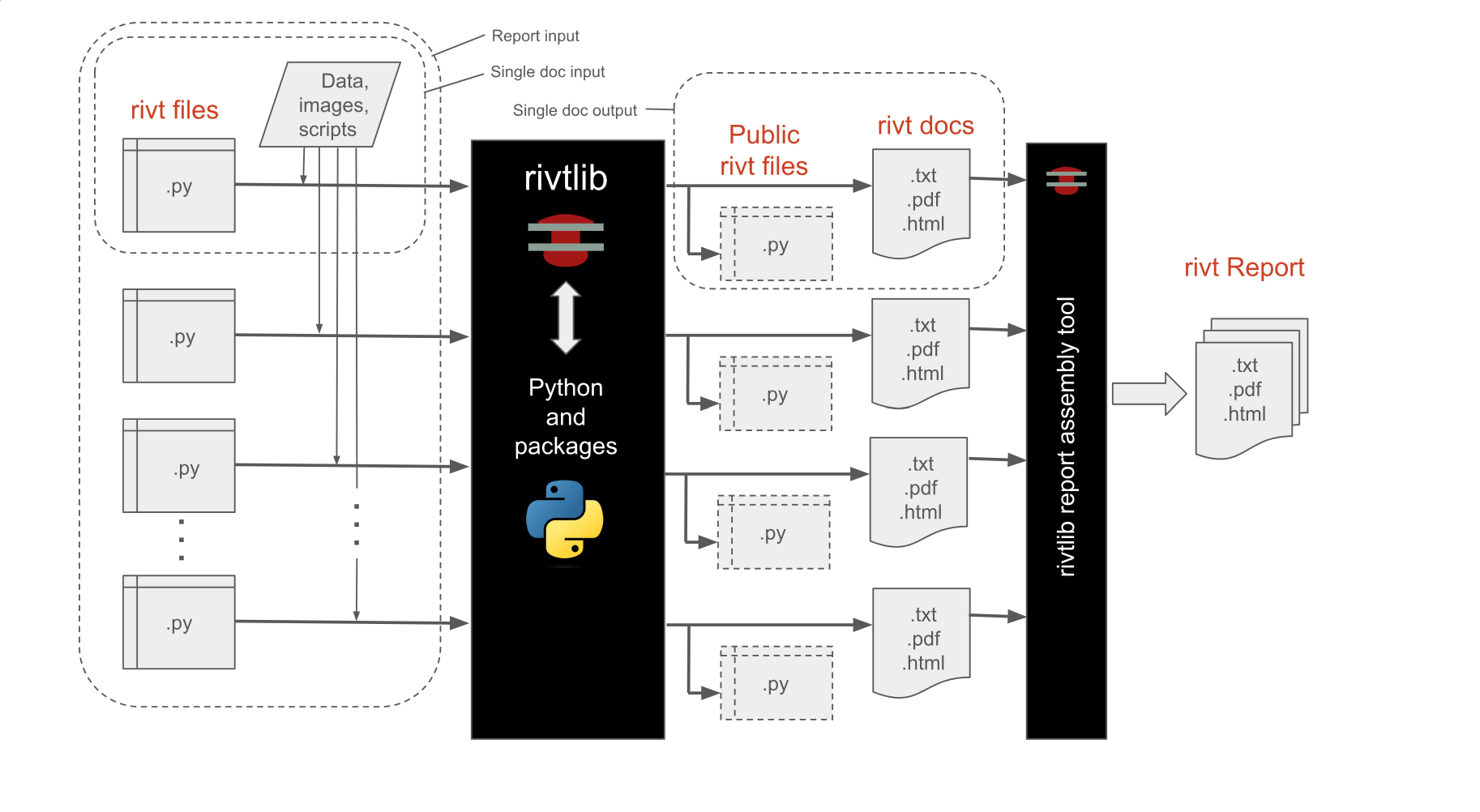

rivt flow chart

rivt Doc Processing

Each rivt file outputs a corresponding doc with the format specified in | PUBLISH | command of the rv.D() API. A rivt file number has the form:

rvAnn-filename.py

where rvAnn is a required file number prefix with A an alphanumeric character and nn a two digit non-negative integer. Corresponding rivt docs are output as:

rvAnn-filename.txt, pdf or html

A rivt report is organized using the file numbers. The file numbers are used to organize reports into divisions and subdivisions. Each rivt file or doc is a report subdivision. If the rivt filenames are:

rvA01-filename.py
rv105-filename.py
rv212-filename.py

the corresponding doc numbers in a report would be:

  • A.1 (division A, subdivision 1)

  • 1.5 (division 1, subdivision 5)

  • 2.12 (division 2, subdivision 12)

[4] Files / Folders#

A rivt file is a Python plain text file ( .py ) that includes API functions and imports the rivtlib package into the rv namespace:

import rivtlib.rvapi as rv

rivt files are stored in either a rivt or rivtbk folder. Each rivt file and corresponding rivt doc has a prefix used for document organization. The top level folder structures are shown below. The difference in folder structure facilitates copying docs from rivtbooks into report. A more detailed description of the folder structure is here.

A report folder can contain any set of files and folders but the following structure is required for <i>doc</i> processing. Files and folders are organized under a root folder with the prefix rivt- e.g. rivt-Report-Label.

report folders (root folders) include at least the rivt files and the five required subfolders. Required folders and prefixes are shown in brackets. Folders preceded by an underscore contain rivt outputs. Folders requiring author input are capitalized.

The top level folder structure is shown below. More detailed descriptions of the folder structures are here.

Report Folders
--------------

[rivt-]Report-Label/           Report Folder
    ├── .help/                     help files
    ├── .vscode/                   optional VSCode settings
    ├── [_rivt-public]/            rivt-generated public files
    └── [README.txt]               text doc or report
        ├── [rvsrc]/                    source files
        ├── [README.txt]                public text report or doc
        ├── [rv-101-]filename1.py       public rivt file
        ├── [rv-102-]filename2.py       public rivt file
        ├── [rv-201-]filename3.py       public rivt file
        ...
    └── [rivt-report]/               rivt files and docs
        ├── [_published]/               published docs and reports
        ├── [_rstdocs]/                 rivt generated rst files
        ├── [_rvstor]/                  rivt generated stored files
        ├── [_rvsrc]/                   author source files
        ├── [rivt-]report.py            report generating script
        ├── [rv101-]filename1.py        rivt file
        ├── [rv102-]filename2.py        rivt file
        ├── [rv201-]filename3.py        rivt file
        ...

rivtbook Folders
----------------

[rivtbk-]Book-Label/            rivtbook folder
    ├── .help/                      help files
    ├── .vscode/                    optional VSCode settings
    ├── [README.txt]                rivt-generated book as text
    ├── [_rstdocs]/                 restructured text files
    ├── [_pdfdocs]/                 PDF docs and report
    ├── [rvbk101-]folder name       rivtbook folder
    ├── [rvbk102-]folder name       rivtbook folder
    ├── [rvbk201-]folder name       rivtbook folder
         ...
